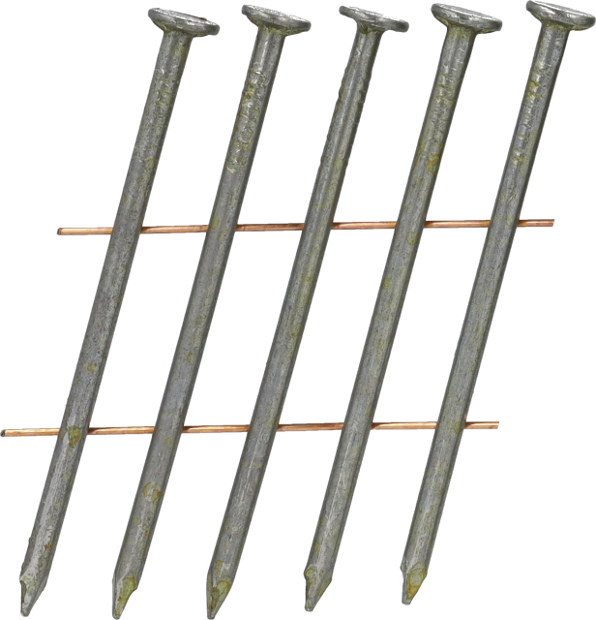

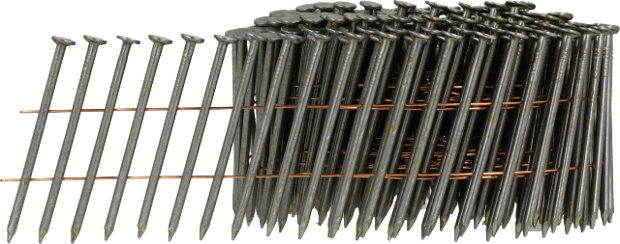

2,5mm Coilnagel, Flachkopf, Glattschaft, blank, sencotiert

Anklicken des Bildes zum Zoomen

Beschreibung

2,5mm Coilnagel, Flachkopf, Glattschaft, blank, sencotiert

Mehr anzeigen Weniger anzeigen

Harmonized standard EN 14592:2008+A1:2012

Informationen anfordern

Spezifikationen

Identifizierung

Article number: BJ26APBF
GTIN: 8715274027142

Technische Spezifikationen

Collation angle: 16 °
Wounding type: Flat
Collation type: Wire collated
Wire material: Carbon steel standard tensile

Spezifikationen für Befestiger

Finish: Bright basic standard tensile
Coating: Sencoted
Application environment: Indoor
Type of nail: Coilnails
Nail shank type: Smooth shank
Point type: Diamond
Pointangle: 36 °
Pitch min: 8.4 mm
Pitch max: 8.4 mm
Max outerdiamer coil: 122 mm
Nail diameter: 2.5 mm
Amount fasteners on strip/coil: 275 - 275
Nail length: 70.0 mm

CE-Spezifikationen

Characteristic head pull through parameter: 27.1 N/mm²
CE fastener type: Round cross-section plain shank nail
DOP No: BJ26APBF
Service class: 1
Coating type: Coating type 3
Head cross sectional area: 27.0 mm
Characteristic yield moment: 1575.0 Nmm
Characteristic tensile strength: 621.0 N/mm²
Harmonized standard: EN 14592:2008+A1:2012
Characteristic withdrawal parameter: 3.1 N/mm²

Nicht-technische Spezifikationen

Package quantity: 7425

Logistische Spezifikationen

Net weight: 21.15 kg

Verbundene Werkzeuge

Downloads

BJ26APBF_de_CommercialProductSheet_1.6_1748504488963 PDF 1 Mb
DOP VS-CPR-201305-S040 PDF 180 Kb
BJ26APBF_de_DeclarationOfPerformanceDoP_1.0eu_1748504556147 PDF 63 Kb
