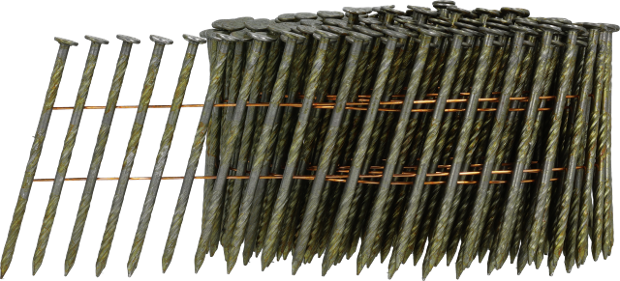

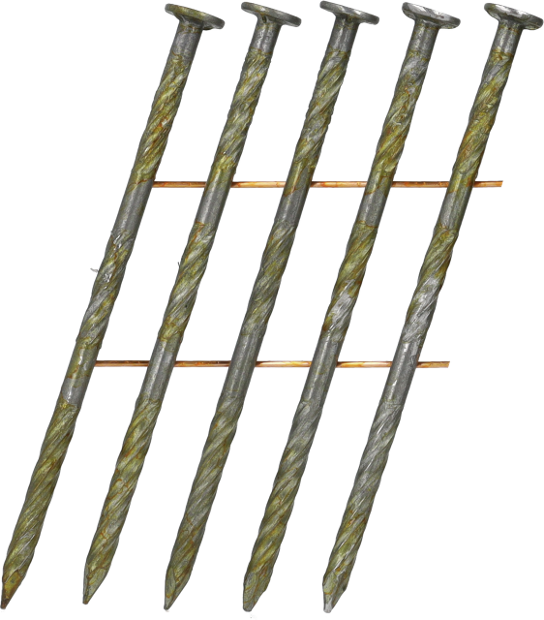

BK Coilnagel Schraubschaft 2,5x70mm

Anklicken des Bildes zum Zoomen

Beschreibung

2,5mm Coilnagel, Flachkopf, Schraubschaft, blank, sencotiert

Mehr anzeigen Weniger anzeigen

Harmonisierte Norm EN 14592:2008+A1:2012

Informationen anfordern

Spezifikationen

Identifizierung

Artikelnummer: BK26APBF
GTIN: 8715274047492

Technische Spezifikationen

Streifenwinkel: 16 °
Wicklung Typ: Flach
Legierungstyp: Drahtcolliert
Drahtmaterial: Kohlenstoffstahl Standard Zugfestigkeit

Spezifikationen für Befestiger

Oberfläche: Blank Standardzugfestigkeit
Beschichtung: Sencot
Anwendung: Innenbereich
Nageltyp: Coilnägel
Nagelschaft Typ: Schraubenschaft
Spitzenart: Diamant
Spitzenwinkel: 36 °
Steigung min.: 8.4 mm
Steigung max.: 8.4 mm
Max. Außendurchmesser Coilnagel: 122 mm
Nagelschaft Nageldurchmesser: 2.5 mm
Menge Befestiger je Streifen / Coil: 275 - 275
Nagelschaft Nagellänge: 70.0 mm

CE-Spezifikationen

Charakteristischer Kopfdurchziehparameter: 25.5 N/mm²
CE-Befestiger-Typ: Schraubnagel mit rundem Querschnitt
DOP No: BK26APBF
Nutzungsklasse: 1
Oberflächenart: Beschichtung Typ 3
Kopf-Querschnittsfläche: 27.0 mm
Charakteristisches Fließmoment: 1799.0 Nmm
Charakteristische Zugspannung: 624.0 N/mm²
Harmonisierte Norm: EN 14592:2008+A1:2012
Charakteristischer Ausziehparameter: 5.25 N/mm²

Nicht-technische Spezifikationen

Anzahl der Packstücke: 7425

Logistische Spezifikationen

Nettogewicht: 19.66 kg
