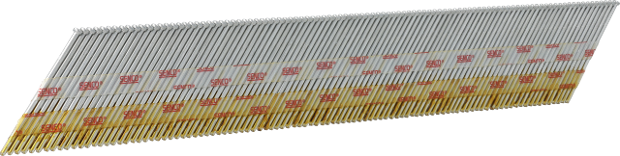

DA Stauchkopfnagel 1,8x32mm

Anklicken des Bildes zum Zoomen

Beschreibung

1,8mm (DA) Stauchkopfnagel, verzinkt, sencotiert

Mehr anzeigen Weniger anzeigen

Informationen anfordern

Spezifikationen

Identifizierung

Artikelnummer: DA15EABN
GTIN: 4032933222293

Technische Spezifikationen

Streifenwinkel: 34 °
Legierungstyp: Streifen, getapted
Drahtmaterial: Kohlenstoffstahl Standard Zugfestigkeit
Drahtstärke: 15

Spezifikationen für Befestiger

Oberfläche: Normal verzinkt
Beschichtung: Sencot
Anwendung: Innenbereich
Nageltyp: Finishnägel
Nagelkopf-Typ: Stift-Kopf
Nagelschaft Typ: Glatter Schaft
Spitzenart: Scharfe Meißelspitze
Spitzenwinkel: 60 °
Nagelschaft Nageldurchmesser: 1.8 mm
Menge Befestiger je Streifen / Coil: 99 - 101
Nagelschaft Nagellänge: 32.0 mm

Nicht-technische Spezifikationen

Anzahl der Packstücke: 4000

Logistische Spezifikationen

Nettogewicht: 2.51 kg

Verbundene Werkzeuge

Downloads

DA15EABN_de_CommercialProductSheet_1.4_1727145306291 PDF 1 Mb
